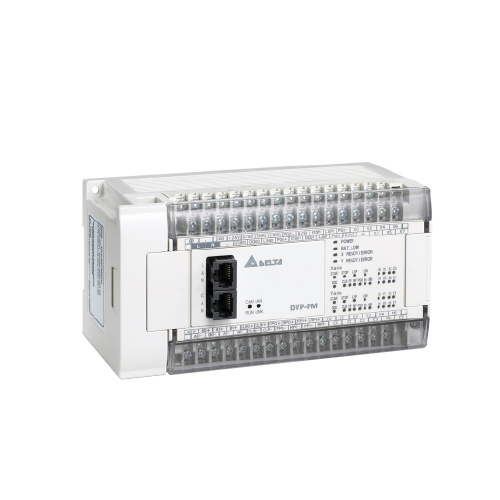

DVP-10PM
อุปกรณ์ควบคุม PLC ยี่ห้อ Delta

DVP-10PM

This series highlights high-speed command execution speed (basic command LD for 0.1375μs, application command MOV for 2.1μs and 1MHz differential output*4) to achieve precise motion control.

แคตตาล็อค

Product Introduction

Applications

Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.

Specifications

  • MPU points: 24
  • Max. I/O points: 256
  • Program capacity: 64k steps
  • Built-in hardware digital filter for counting
  • 6 high-speed counters (O.C. 200kHz*4, differential 200kHz*2), supporting U/D, U/D Dir, A/B, 4A/B counting modes
  • 4 differential 1MHz outputs, supporting U/D, U/D Dir, A/B output modes
  • Supports 1-speed (immediate stop after the mark arrives), 2-speed, zero return, MPG and single axis function
  • Highly accurate PWM 200kHz output, resolution 0.3%
  • Electronic gear function
  • 8 high-speed captures (mark correction, frequency measurement), comparative output, mark/mask function (for bag making)
  • 8 external interruptions for setting up rising- and falling-edge triggers, 1 timed interruption
  • Highly efficient command execution. LD: 0.1375μs, MOV: 2.1μs
