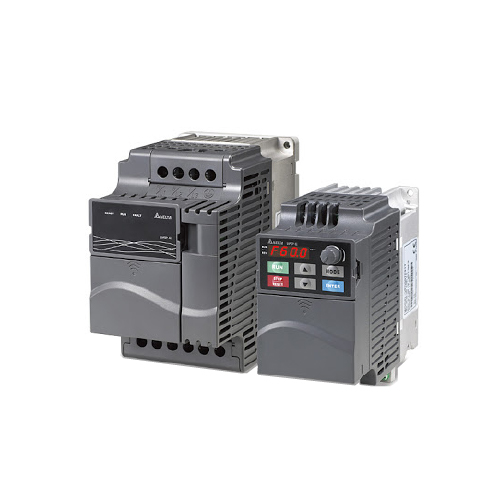

Sensorless Vector AC Micro Drive. The VFD-E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.
| FRAME A1 |
|
|
FRAME A2 |
|
|
FRAME A3 |
|
| No | Model |
|
No | Model |
|
No | Model |
| 1 | VFD002E11A/11C/11T |
|
1 | VFD015E23A/23C/23T |
|
1 | VFD002E11P/21P/23P |
| 2 | VFD002E21A/21C/21T |
|
2 | VFD015E43A/43C/43T |
|
2 | VFD004E11P/21P/23P/43P |
| 3 | VFD002E23A/23C/23T |
|
|
|
|
3 | VFD007E21P/23P/43P |
| 4 | VFD004E11A/11C/11T |
|
|
|
|
4 | VFD015E23P/43P |
| 5 | VFD004E21A/21C/21T |
|
|
|
|
|
|
| 6 | VFD004E23A/23C/23T |
|
|
|
|
|
|
| 7 | VFD004E43A/43C/43T |
|
|
|
|
|
|
| 8 | VFD007E23A/23C/23T |
|
|
|
|
|
|
| 9 | VFD007E43A/43C/43T |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| FRAME B |
|
|
FRAME C |
|
|
FRAME D |
|
| No | Model |
|
No | Model |
|
No | Model |
| 1 | VFD007E11A/11C |
|
1 | VFD055E23A/23C |
|
1 | VFD150E23A/23C |
| 2 | VFD022E23A/23C |
|
2 | VFD055E43A/43C |
|
2 | VFD150E43A/43C |
| 3 | VFD022E43A/43C |
|
3 | VFD075E23A/23C |
|
3 | VFD185E43A/43C |
| 4 | VFD037E23A/23C |
|
4 | VFD075E43A/43C |
|
4 | VFD220E43A/43C |
| 5 | VFD037E43A/43C |
|
5 | VFD110E23A/23C |
|
|
|
|
|
|
|
6 | VFD110E43A/43C |
|
|
|
