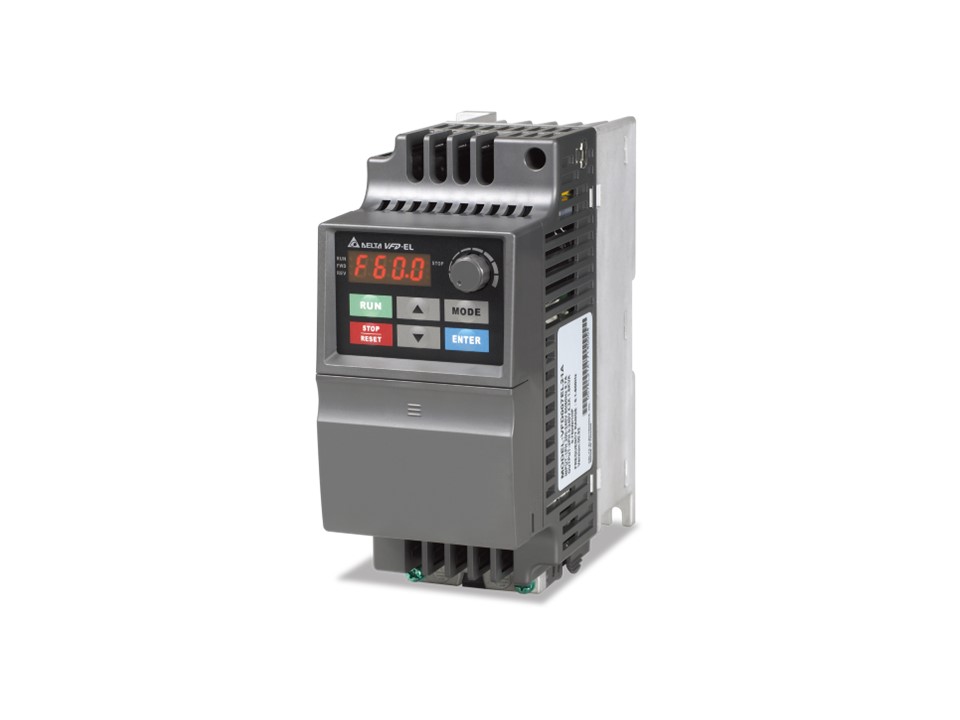

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built In keypad.

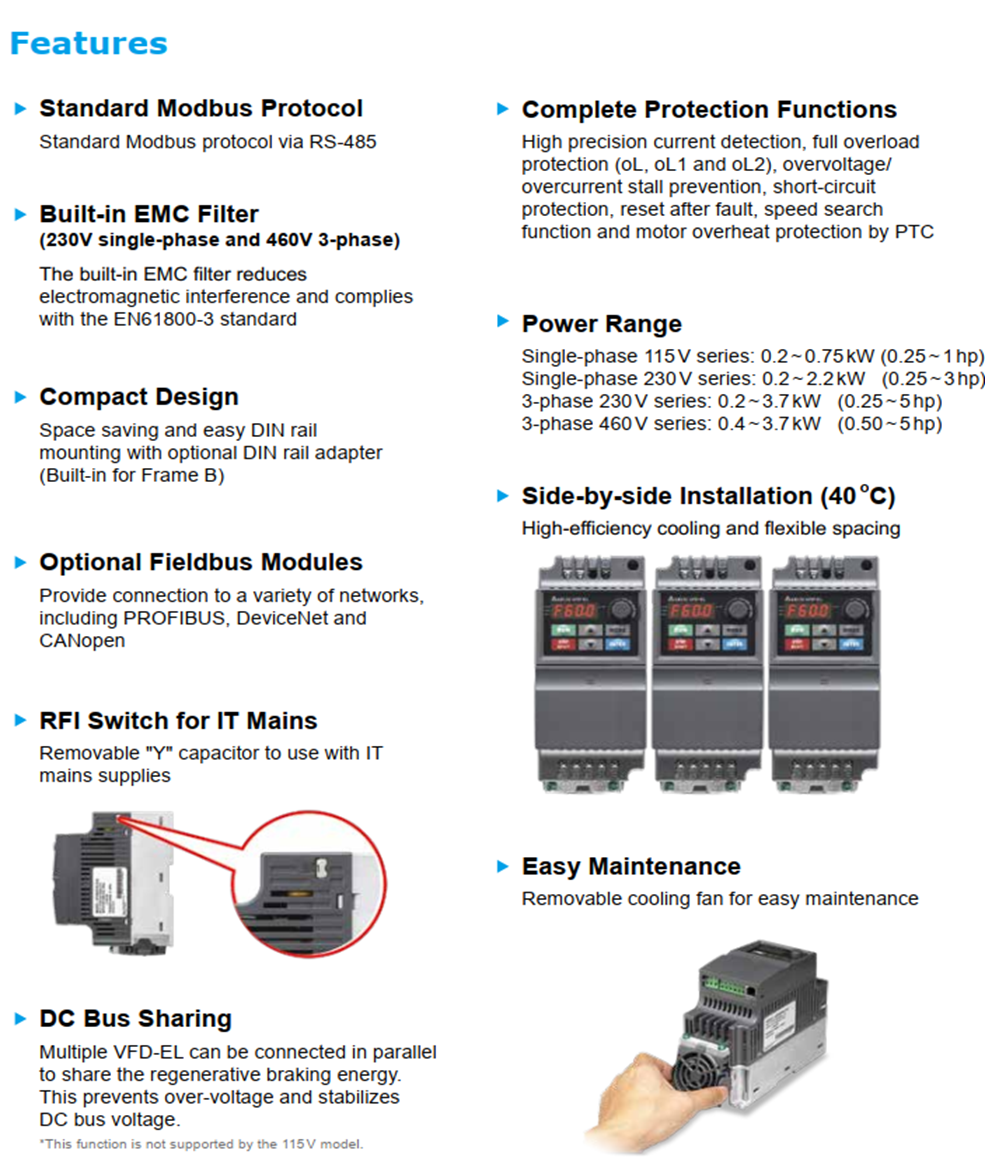

Output frequency: 0.1~600Hz
3 points adjustable V/f curve
Built-in PID feedback control
RFI-switch for IT mains
Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
Use RS-485 communication interface (RJ-45) with Modbus protocol
Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
Complete protection function

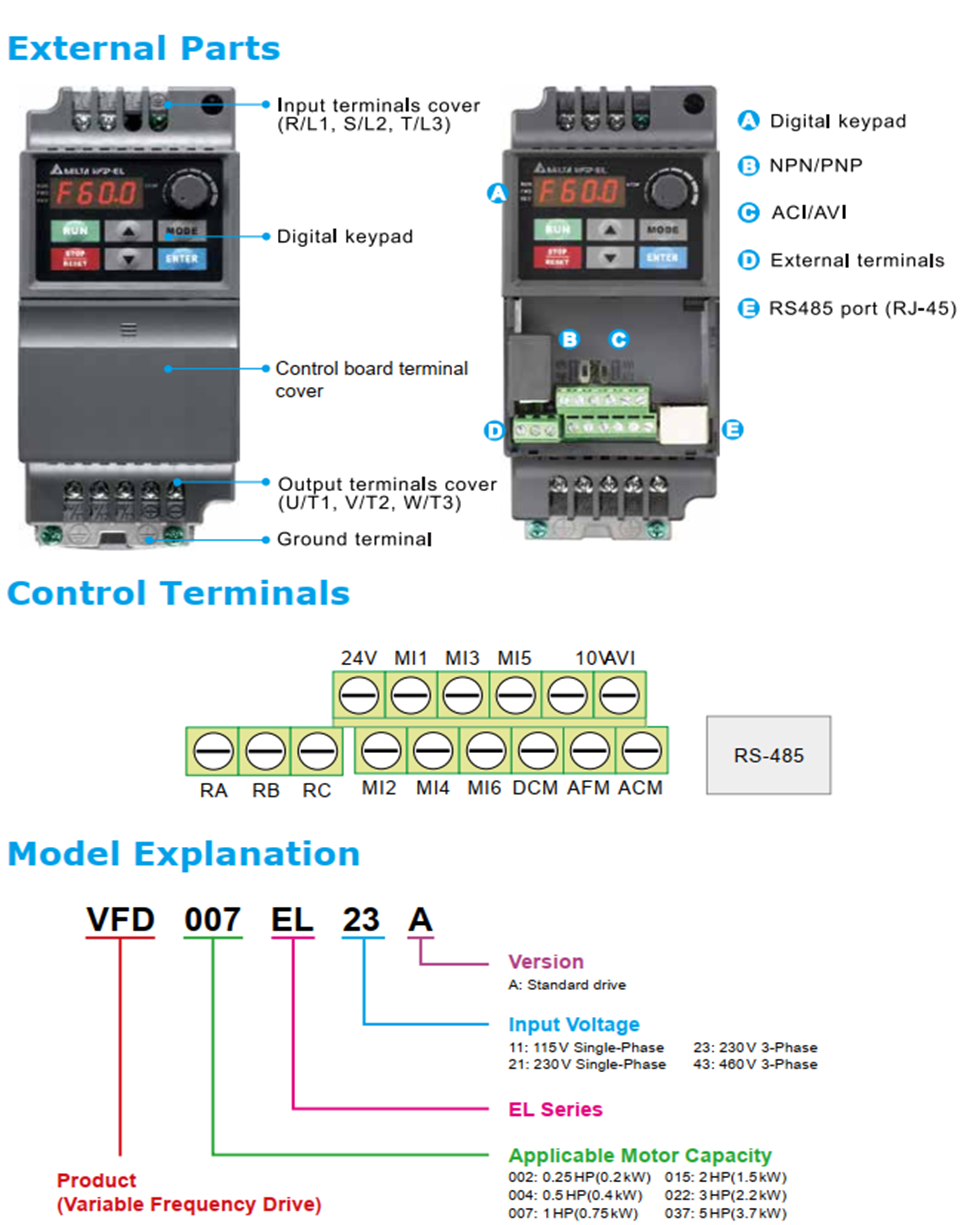

FRAME A |
|
|
FRAME B |
|
No | Model |
|
No | Model |
1 | VFD002EL11A |
|
1 | VFD007EL11A |
2 | VFD002EL21A |
|
2 | VFD015EL21A |
3 | VFD002EL23A |
|
3 | VFD022EL21A |
4 | VFD004EL11A |
|
4 | VDF022EL23A |
5 | VFD004EL21A |
|
5 | VFD022EL43A |
6 | VFD004EL23A |
|
6 | VDF037EL23A |
7 | VDF004EL43A |
|
7 | VFD037EL43A |
8 | VFD007EL21A |
|
|
|
9 | VDF007EL23A |
|
|
|
10 | VDF007EL43A |
|
|
|
11 | VDF015EL23A |
|
|
|
12 | VFD015EL43A |
|
|
|
