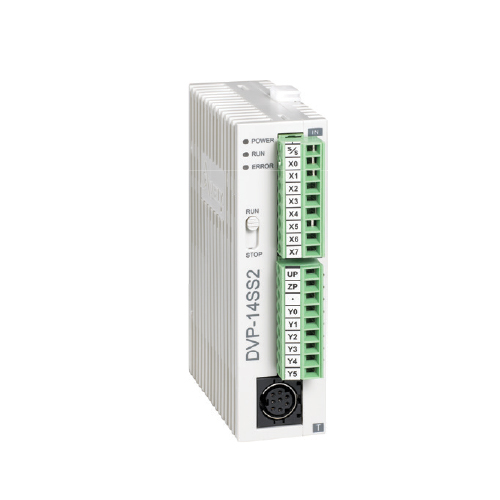

DVP-SS2 Series
อุปกรณ์ควบคุม PLC ยี่ห้อ Delta

DVP-SS2 Series

The 2nd generation DVP-SS2 series slim type PLC keeps the basic sequential control functions from the DVP-SS series PLC but with faster execution speed and enhanced real-time monitoring capability.

แคตตาล็อค

Applications
Spinning machine, conveyer belt (rotation speed control), winding machine (tension control)

Specifications
MPU points: 14 (8DI + 6DO)
Max. I/O points: 494 (14 + 480)
Program capacity: 8k steps
COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.
High-Speed Pulse Output:Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output
Supports PID Auto-tuning:DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.
Built-in High-Speed Counters
